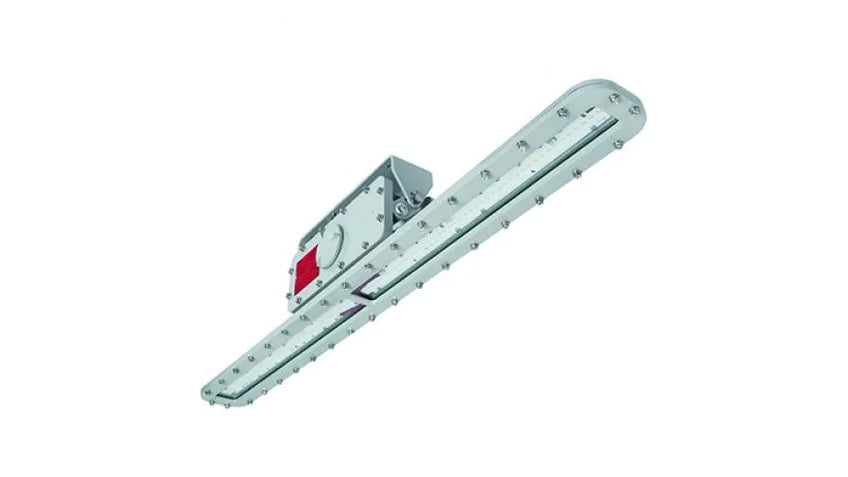

XML LED - CIDI, CIDII, CIIDI 4′ Linear w / Clear Lens, Mtg Brkt

XML LED - CIDI, CIDII, CIIDI 4′ Linear w / Clear Lens, Mtg Brkt

$1,880.00 USD
$1,991.64 USD $1,880.00 USD
Sale Sold out

Explosionproof LED linear lighting

CIDI, CIDII, CIIDI 4′ Linear w / Clear Lens, Mtg Brkt

Standard Features:

  • Low-profile, lightweight design
  • Convenient wiring access through screw-cap cover with toolless, cage clamp terminal block
  • Self-contained emergency battery backup, no additional junction box required
  • Heavy-duty, 7/16″ thick die-cast safety cable attachment points
  • Replaceable LED circuit boards and drivers with quick disconnects
  • Adjustable mounting bracket with 90 degree range of motion and 13 locking positions (Not included. Must be ordered seperately.)

Additional Features:

  • Supplemental 10kV surge protection
  • Central safety cable attachment points for increased safety/reduced range of motion
  • Feed-through and pendant mount capable
  • Diffused lens option
  • 5-year warranty

Classifications:

  • Class I, Division 1, Groups C & D
  • Class I, Division 2, Groups C & D
  • UL 844 Hazardous Locations
  • UL 924 Emergency Lighting
  • UL 1598A Marine Outside Type
  • UL 1598 Wet Locations
  • UL 8750 LED Safety
  • IEC/ATEX
  • CSA C22.2 No. 250.0–08
  • CSA C22.2 No. 137–M1981
  • NEMA 4X, 7CD
  • IP66
  • Paint Spray Booth
  • Emergency Battery Backup
  • -40°C to 65°C Ambient Temperature
  • Tested to LM79 and LM80
  • DLC Listed LED

Standard Materials:

  • Body: A360 Aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gaskets: One-piece neoprene
  • Lens: Tempered glass
  • Hardware: Stainless steel
