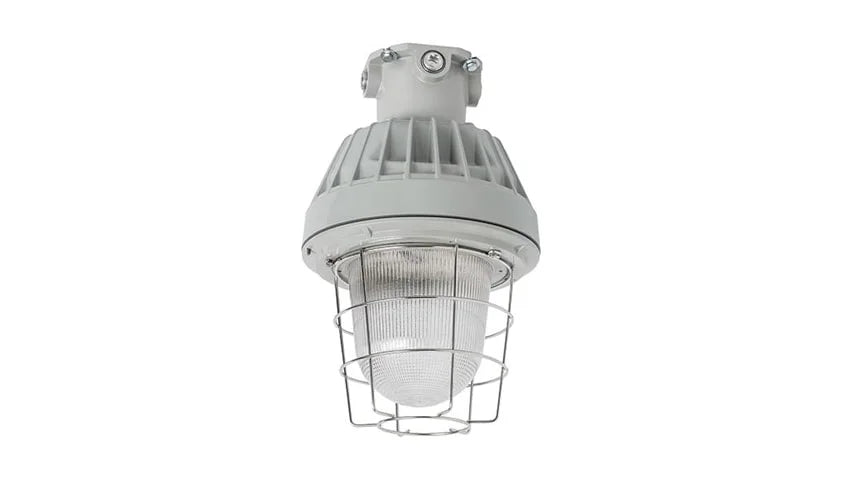

SXPJ LED

SXPJ LED

$2,550.00 USD
$2,613.25 USD $2,550.00 USD
Sale Sold out

Explosionproof LED area lighting



Standard Features:

  • Single-pin quick disconnect mount with double acme thread
  • Component access via single set screw
  • Field-replaceable LED circuit boards and drivers with quick disconnects
  • Wireless electromechanical terminal block

Additional Features:

  • Supplemental 10kV surge protection
  • Standard, angle and high-bay reflector options available
  • Pendant, ceiling, wall, stanchion and trunnion-mounting options
  • Optional stainless steel guard
  • 5-year warranty

Classifications:

  • Class I, Division 1, Groups C and D
  • Class II, Division 1, Groups E, F and G
  • Class III
  • Class I, Zone 1, Groups IIA and IIB
  • UL 1598 wet locations8
  • UL 1598A marine outside type
  • UL 8750 LED safety
  • UL 844 hazardous locations
  • IEC/ATEX
  • cUL listed
  • LM79 and LM80
  • NEMA 4X
  • IP66
  • 2.34 spacing criteria-compliant
  • 55°C maximum ambient temperature
  • DLC Listed LED

Standard Materials:

  • Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gaskets: one-piece silicone
  • Lens: borosilicate glass
  • Hardware: stainless steel
