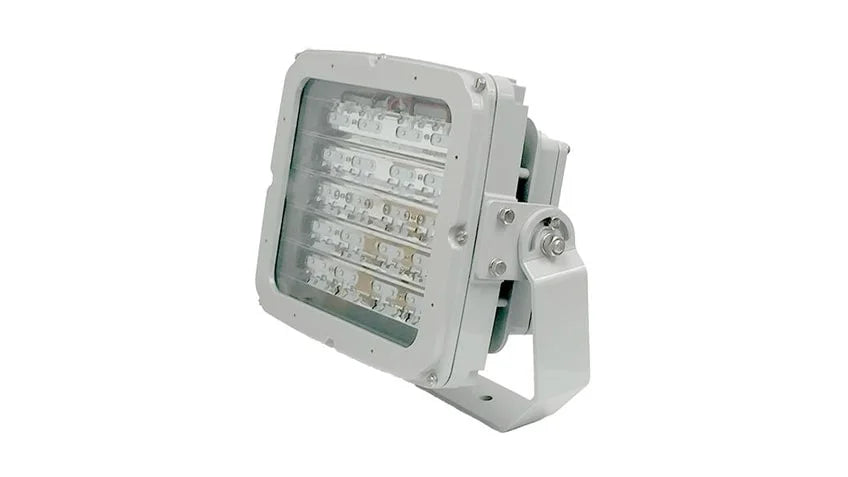

LHFLJ LED - 132 Watt

LHFLJ LED - 132 Watt

$2,150.00 USD
$2,209.66 USD $2,150.00 USD
Sale Sold out

LED floodlight/high-bay for hazardous locations.

132 Watt, CIDII, CIIDI & DII Universal – Flood / Pend



Standard Features:

  • Compact design
  • High-performance precision optics system
  • Field-replaceable LED circuit boards and drivers with quick disconnects
  • Approved for high-ambient applications, up to 65° C
  • Two permanent safety cable retention points
  • Flexible universal mounting system allows for trunnion or pendant installation

Additional Features:

  • Supplemental 10kV surge protection
  • Dual hub entries, feed-through capable
  • Optional polycarbonate lens
  • Terminal block
  • Optional emergency battery back-up
  • 5-year warranty

Classifications:

  • Class I, Division 2, Groups A, B, C and D Class II, Divisions 1 and 2, Groups E, F and G
  • Class III
  • Zone 2, Groups IIA, IIB and IIC
  • UL 844 hazardous locations
  • UL 1598A marine outside type
  • UL 1598 wet locations
  • UL 8750 LED safety
  • ATEX/IEC/EX approvals
  • 65°C ambient temperature (Class I, Division 2)
  • 55°C ambient temperature (Class II & III)
  • CAN/CSA C22.2 No. 250.0-08
  • CAN/CSA C22.2 No. 137-M1981
  • LM79 and LM80
  • ABS type approved
  • IP66
  • NEMA 4X

Standard Materials:

  • Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gaskets: silicone
  • Lens: tempered glass
  • Hardware: stainless steel
