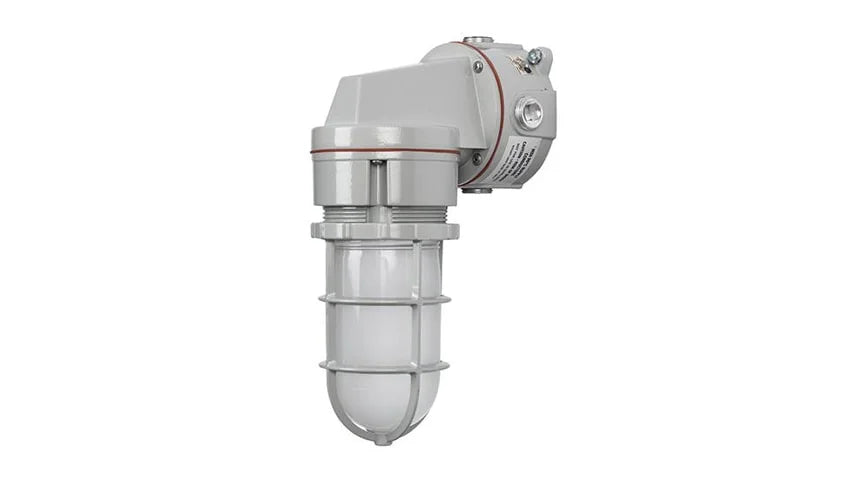

AVPH LED

AVPH LED

$499.98 USD
$591.18 USD $499.98 USD
Sale Sold out

LED globe and guard lighting for hazardous locations.



Standard Features:

  • Compact luminaire with high lumen output
  • Rugged 5/32″ thick housing
  • Glare-reducing frosted globe
  • Field-replaceable LED circuit boards and drivers with quick disconnects
  • Standard protective guard

Additional Features:

  • Ceiling, pendant and wall mounting options
  • No external fins
  • Optional dimming driver
  • 2 kV surge protection
  • 5-year warranty

Classifications:

  • Class I, Division 2, Groups A, B, C and D
  • Zone 2, Groups IIA, IIB and IIC
  • UL 844 hazardous locations
  • UL 1598A marine outside type
  • UL 1598 wet locations
  • ABS type approved
  • Ul 8750 LED safety
  • cUL listed
  • NEMA 3, 4 and 4X
  • -20°C to 40°C ambient temperature

Standard Materials:

  • Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Guard: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gasket: one-piece silicone
  • Lens: borosilicate glass
  • Hardware: stainless steel
